DESCRIPTION

HYBRID - NURSERY JAWS

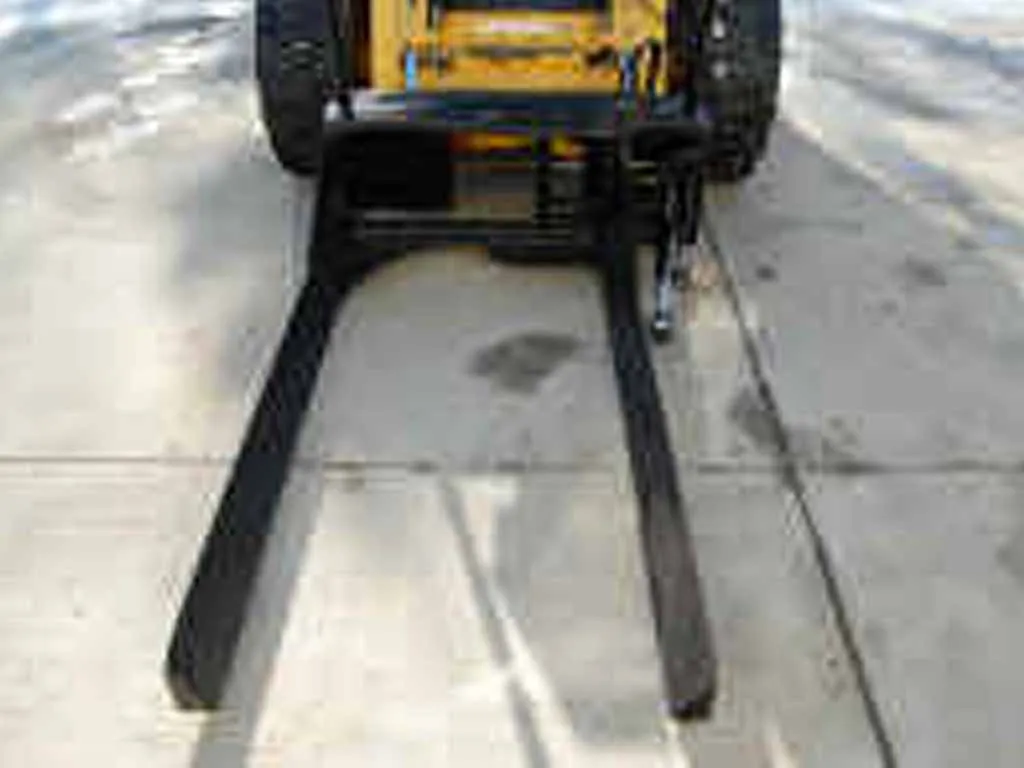

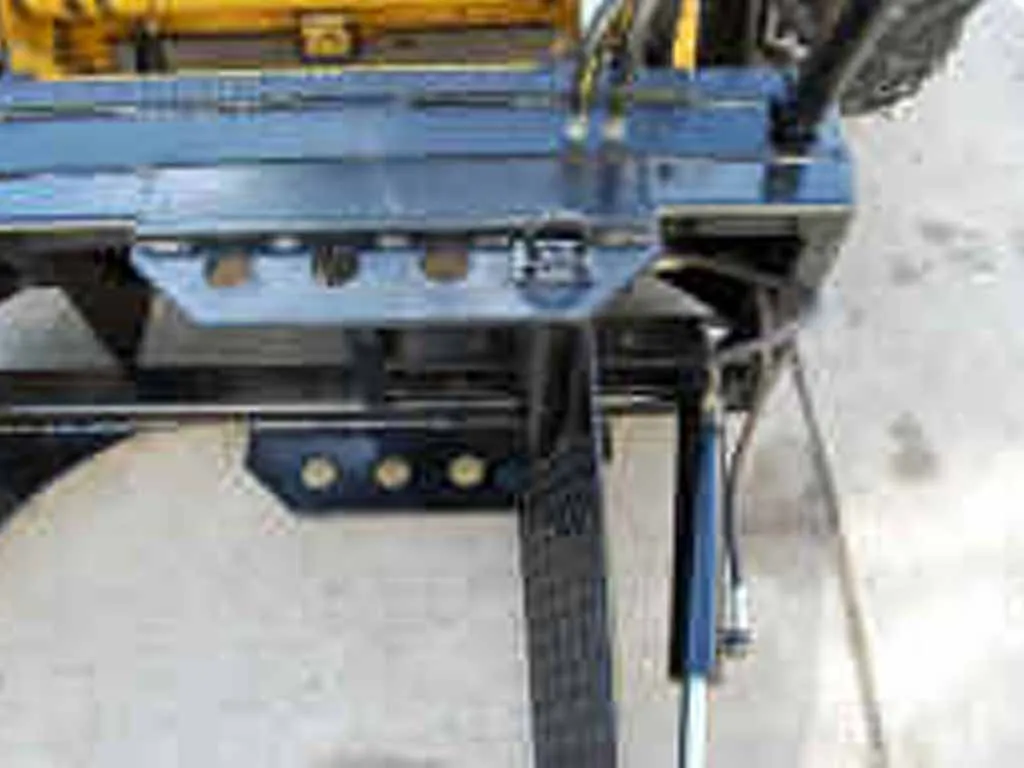

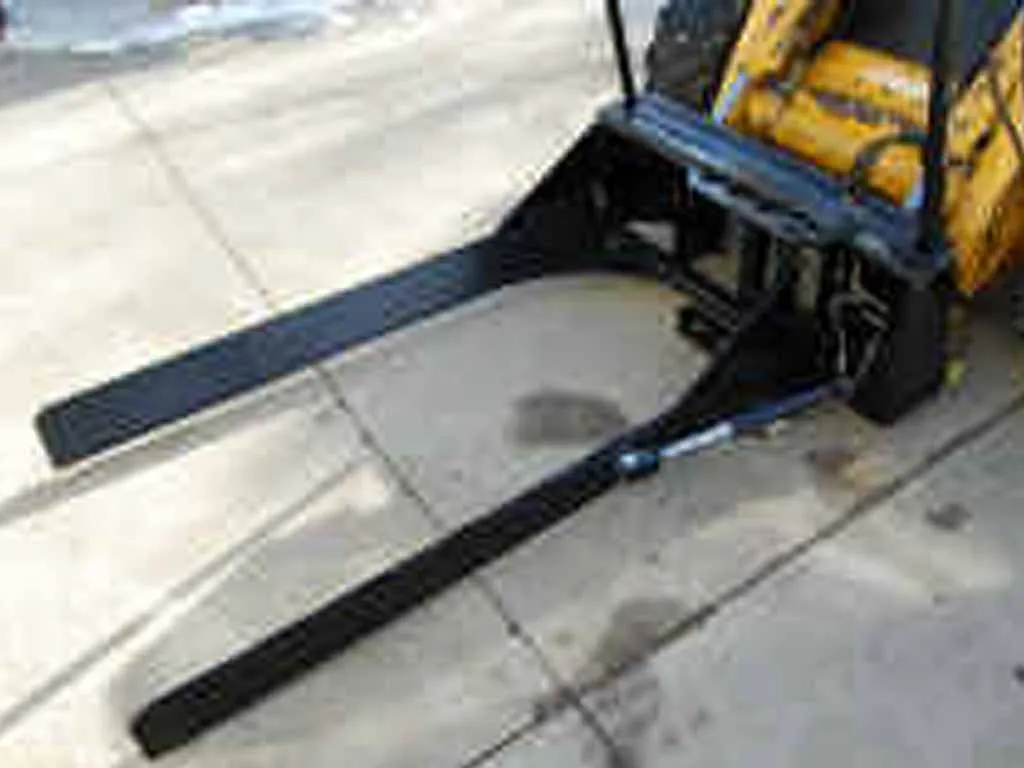

The Nursery Jaws® Hybrid features a manually adjustable pivot point that allows you to handle a variety of material. The Nursery Jaws® Hybrid incorporates the rugged simplicity of the Nursery Jaws 1 with the increased versatility of the Nursery Jaws 2 into one attachment. This new design combines greater carrying capacity with lighter weight. The Nursery Jaws® Hybrid is one durable and versatile partner for your business.

With the Nursery Jaws® Hybrid, you can:

• Remove trees from mulch
• Move up to 60" B&B trees
• Move up to 36" boxes or container
• Move up to 65 gallon pots
• Move growbags
• Load, unload and double stack
• Transport and plant nursery stock
• Move and place boulders
• Simple to use
• Carry loads up to 3000 lbs.

Options:

• (2) DIFFERENT SIZE PADDLES 66"x5" & 72"X5"
• UPGRADDED PREASURE RELIEF COUPLERS -ALLOWS EASIER CONNECTION TO MACHINE
• FLOW CONTROL - ALLOWS YOU TO CONTROL SPEED OF PADDLE MOVEMENT
• BOX PADDLES - PADDLES MADE A 9 DEGREE ANGLE FOR LOADING BOXED MATERIALS

** Paddle length is the total length, and does not reflect the total usable length.

SPECS

BIG DAVE

How To Determine Which Model of Nursery Jaws To Choose

By asking the right questions, you can easily determine which Nursery Jaws best fit your operation. For example, a small landscaper with a 1200lb lift capacity loader does not need a Nursery Jaws 2. Conversely, a large wholesaler with a 3000 lbs. capacity loader should not have a Nursery Jaws Jr. There are a few exceptions to every rule, but here are a few guidelines to follow.

• What material s will the NJ Hybrid handle? Up to 60" B&B, 32" boxes, plastic containers, grow-bags and boulders.
• Loader requirements? 1500-3000lbs rated capacity
• Characteristics of the NJ Hybrid? Load, move and plant B&B, boxed and container trees, boulders and move pallets. Manually adjustable pivot point allows for wider and narrower parallel spacing than the Nursery Jaws 2.

• Do I need to upgrade to pressure relief fittings? My opinion is yes. Attachments can build pressure from the machines they are on or weather from sitting. With a standard fitting the only way to release pressure is to crack a hydraulic line. This can hurt someone or create a mess that can damage vegetation.

• Do I need flow control or a manual valve? In most cases no. You add this option if you are worried that your operators will crush the products by not controlling the speed of the attachment.
• Do I need a Box style paddle? In most cases no. You only add this option if the material you handle are contained in boxes. This is mostly done in CA.
