AD-12 GEO Automatic Self Levelling Tripod

Lead time can vary on these units - please contact us directly.

E:

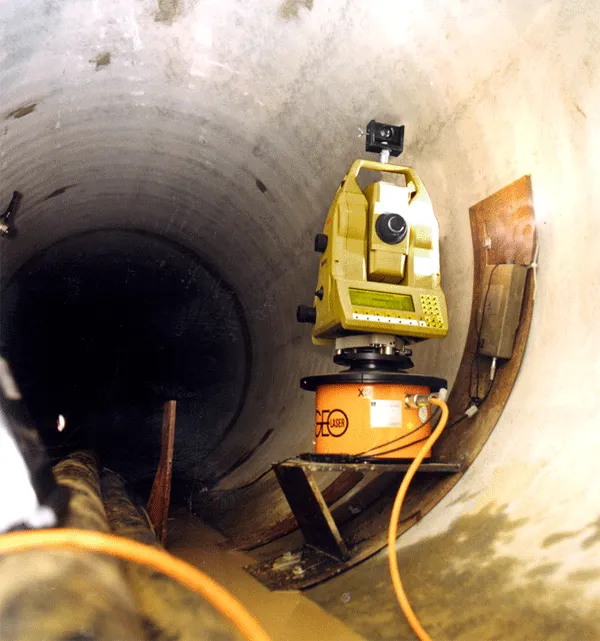

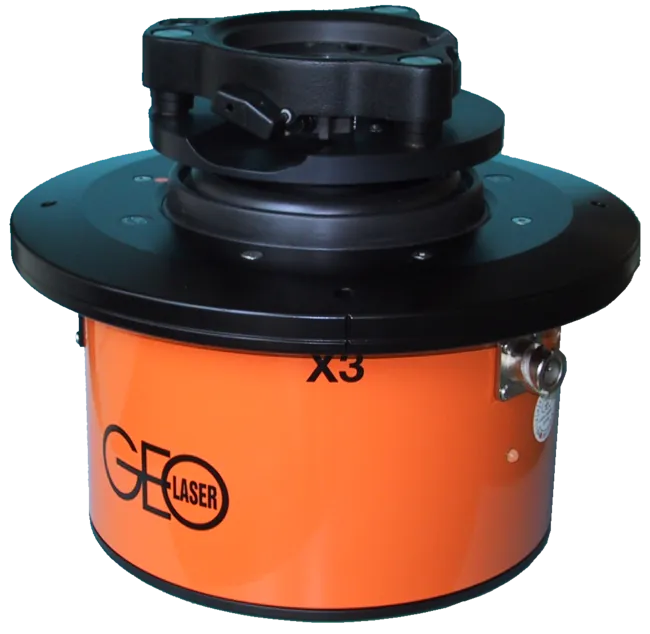

The automatic tripod AD-12 is used for automatic levelling of laser and surveying instruments, especially total stations. It can naturally also be used for automatic levelling of other devices with weights up to 10 kg.
The levelling range is /- 12 gon. Levelling is continuous with an accuracy of 10 mgon. All components including the servomotors, adjustment units, inclinometers and measuring and control electronics are integrated into a dust and waterproof housing.

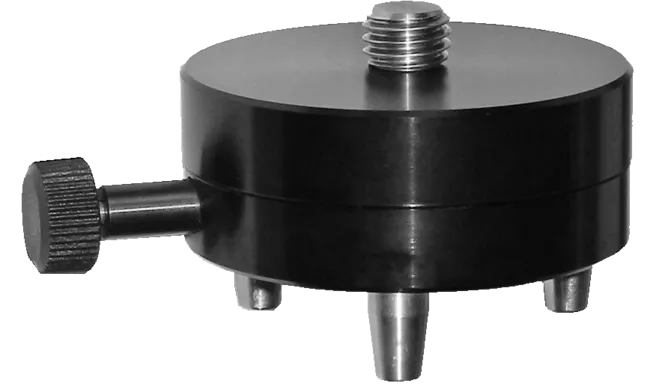

The automatic tripod AD-12 is fastened to a stand or platform with a central retaining screw 5/8″. Orientation of the horizontal axes is possible via notch markings. The theodolite or total station is placed in the tripod positively centred and locked in position.

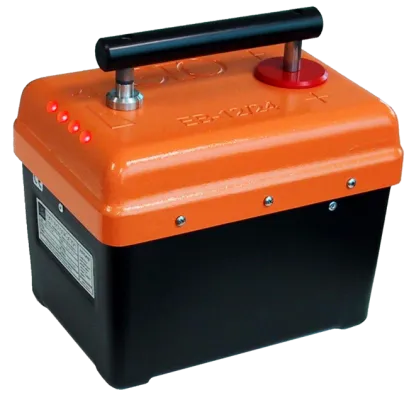

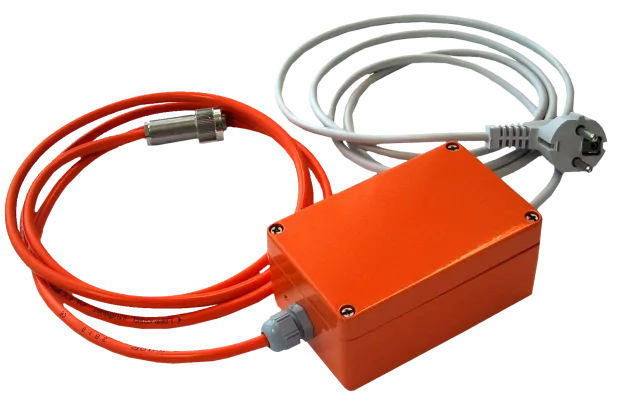

The power supply of the AD-12 is done via an connection cable either to an optional available 12 V rechargeable battery (EB-12) or to a power pack (NE-12/2A).

SPECIFICATIONS
