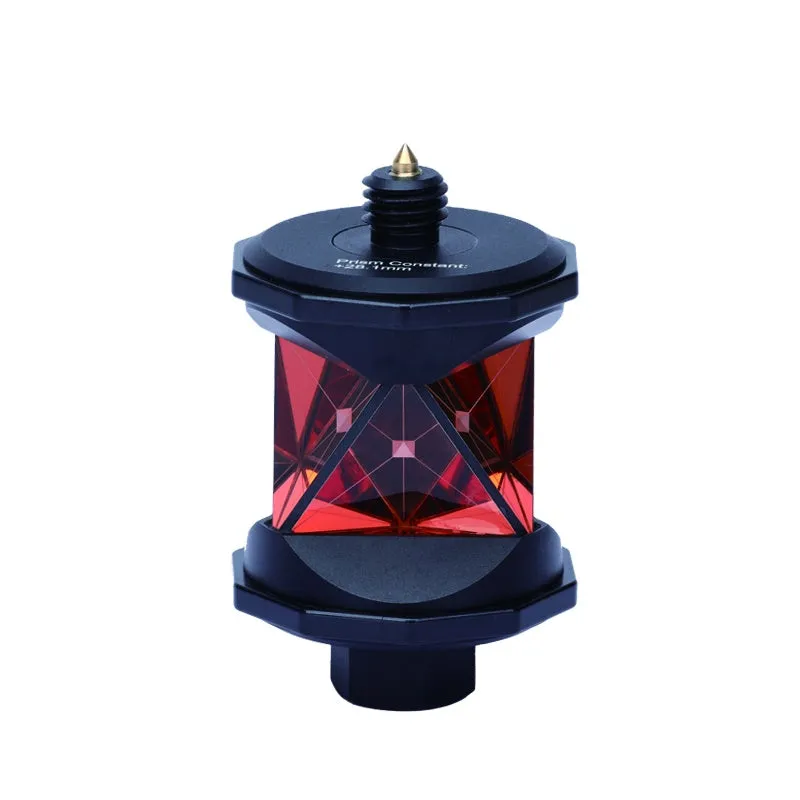

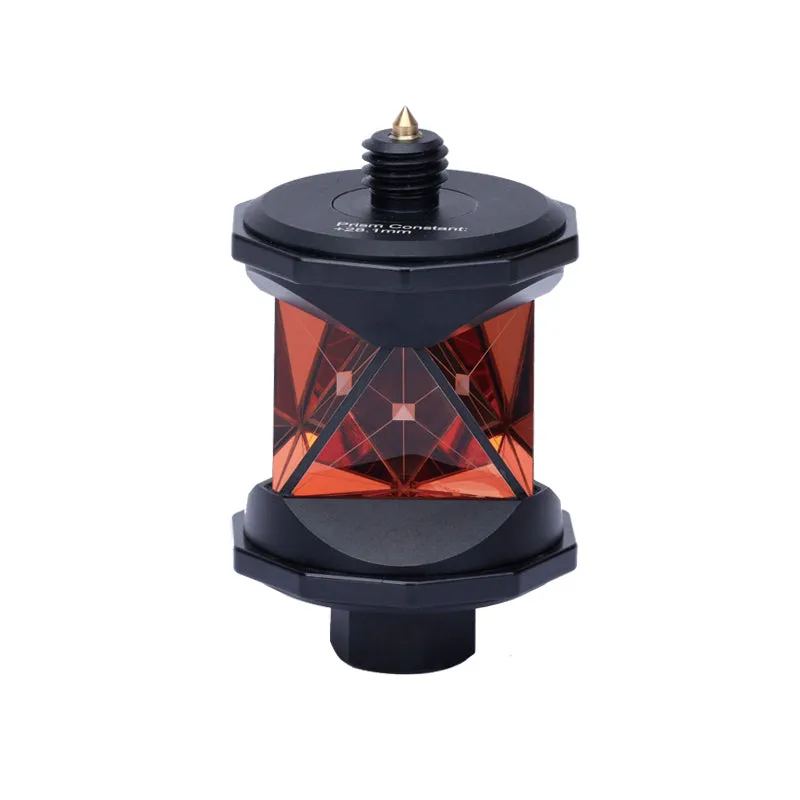

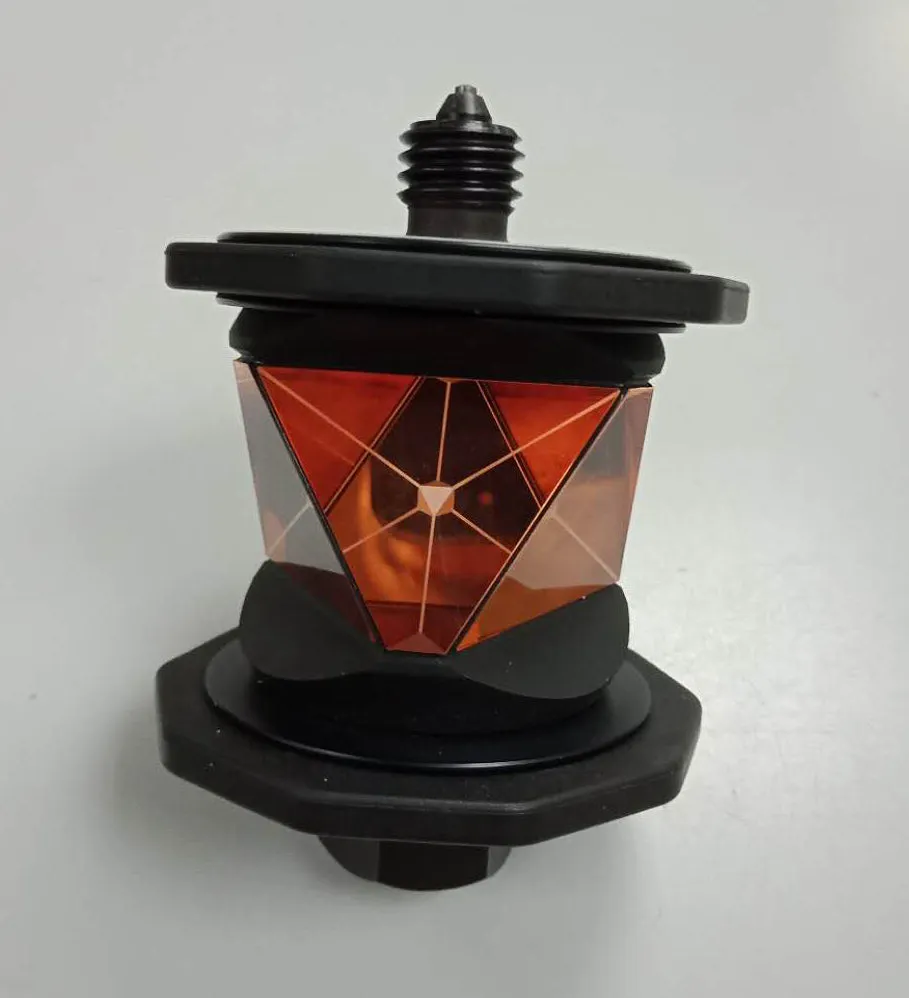

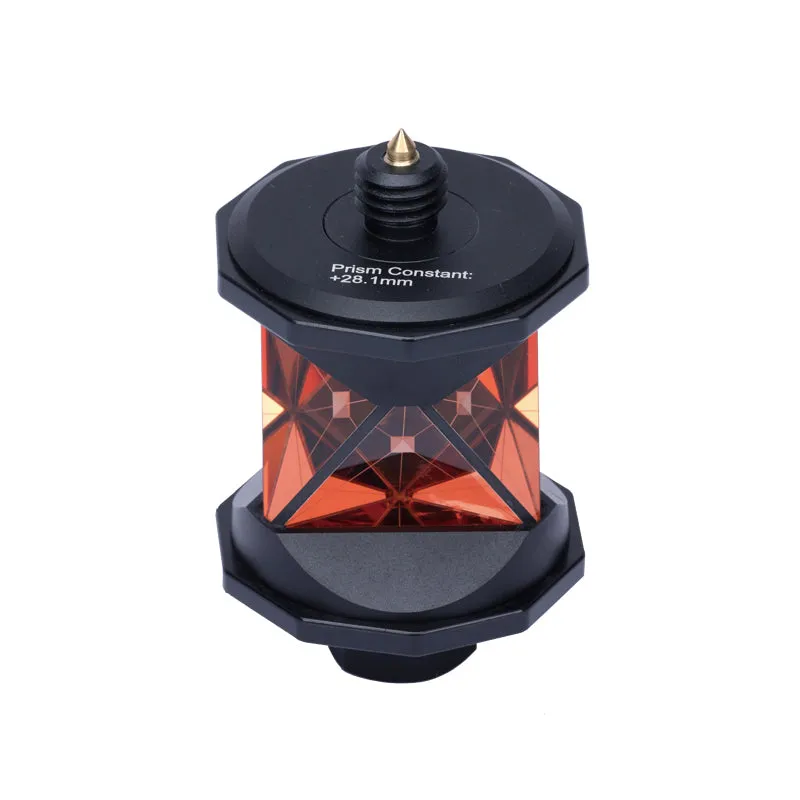

The Mountlaser Swiss-Style MPR122 360° Reflector Prism is a versatile surveying tool designed for high-precision measurements. Here are some 360° Reflector Prism key features:
360° Reflective Surface: Allows for measurements from any angle, enhancing usability in various surveying applications.
5/8″ Thread: Compatible with most surveying instruments, making it easy to mount on tripods or other equipment.
Durable Design: Built to withstand harsh environmental conditions, ensuring longevity and reliability in the field.
Lightweight and Portable: Easy to transport, making it suitable for both fieldwork and construction sites.
High Accuracy: Provides precise reflection of laser signals, which is critical for accurate surveying.
MPR122 360° Reflector Prism Parameter Specification Table:
| Model | MPR122 |
| For Total Station | Swiss-Style |
| Height Offset | 50.0mm |
| Prism Constant | 28.1mm |
| Beam Deviation | 3arcsec |
| Working Range | 1000 ft. (300m) |
| Mount | 5/8" Male, 5/8" Female |
| Coating | Copper |
| Production location | China |
